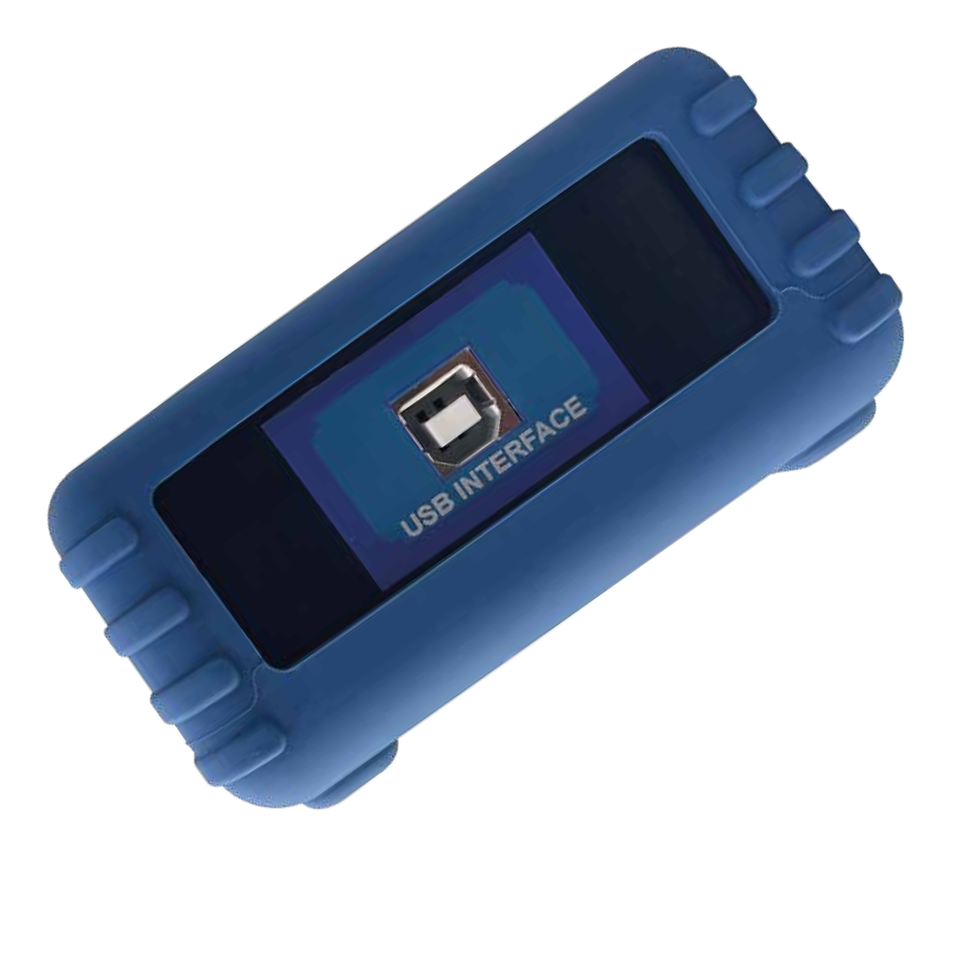

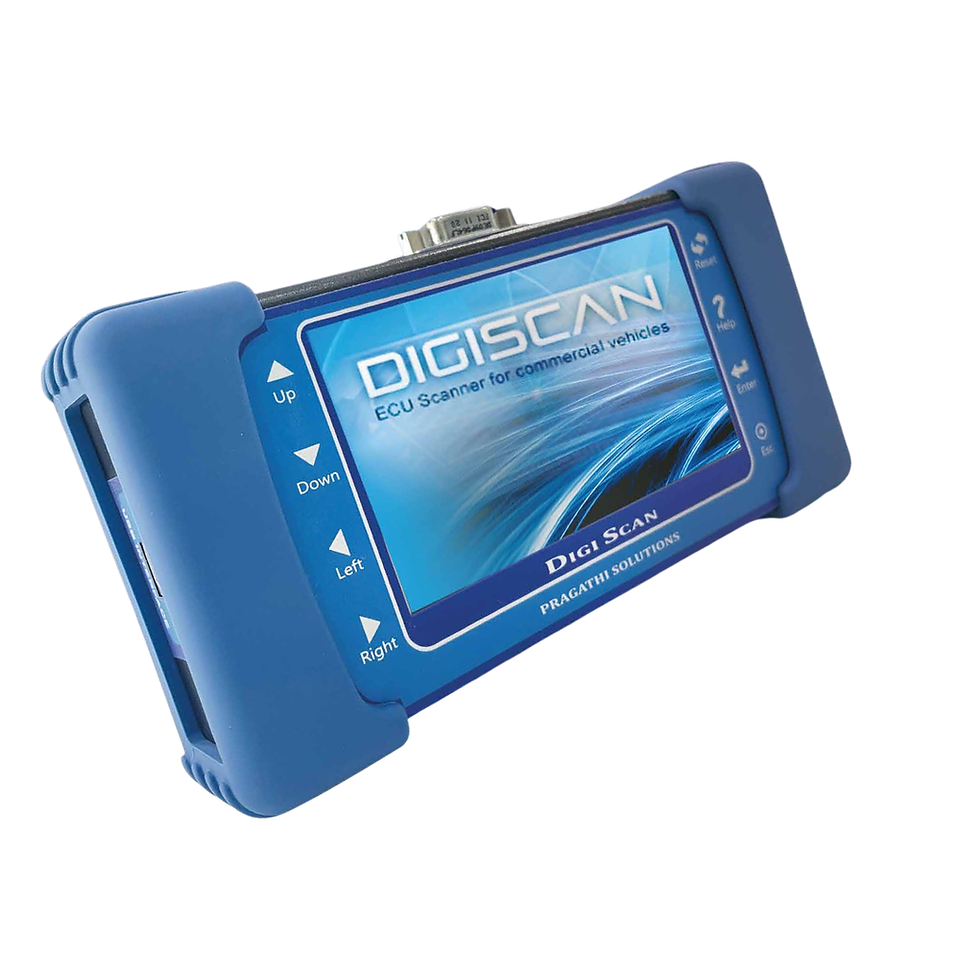

DIGISCAN ECU Scanner TATA ASHOK LEYLAND FORCE BHARAT BENZ EICHER SML
Handheld with user friendly Firmware
Supports EOL Flashing & Diagnostics Communicates with multiple ECU’s
Multiple Protocols & Automatic Protocol selection Inbuilt Power supply, no external charging required 4.3” TFT display
Multiple parameters visibility
Dataset stored in the memory in encrypted format Data Logging enabled
DTC’s with Cause & Remedial action
Adjust required parameters
Online firmware updation
Offline GUI Software for Logged data analysis
Handheld Scanner
External Communication via K – Line / CAN CAN Communication via J1939 Protocol / UDS/ KWP on CAN
Power supply range 08 Volt – 32 Volt
32 Bit, 120 MHz ARM Cortex Series Processer Memory 2GB internal
Memory 4 to 32 GB external
Online Data Logger
In built 09 volt linear Power Supply
TFT 4.3“ Display
Touch pad
J1962M to DB9F, OBD Cable
Uploading the data to PC via USB 3.0
EMI/ EMC protection comply
